Vernier Wide Range Temperature Probe

Call for price

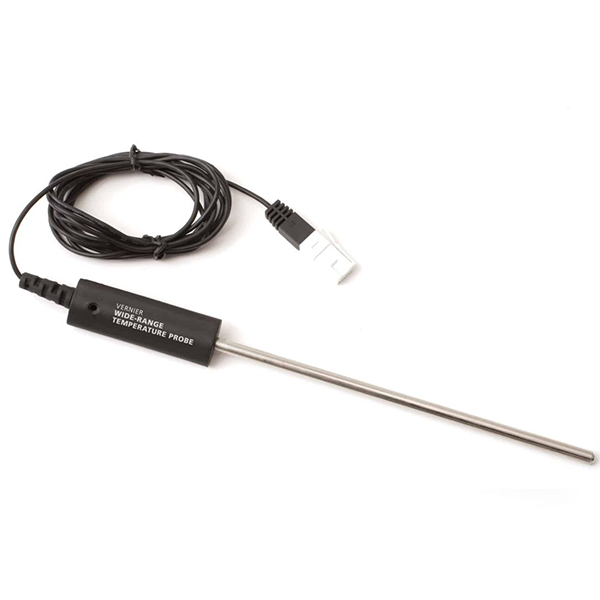

This rugged temperature probe features a wide temperature range, from –20 to 330°C. The high upper limit of the sensor allows for melting point determinations of most organic compounds.

Description

Vernier’s wide-range temperature probe uses RTD (Resistance Temperature Detection) technology to establish a ±0.5°C accuracy, as well as excellent stability and repeatability. Each unit is individually calibrated, and the calibration is stored on a smart chip in the sensor. It is designed to be used as you would use a thermometer for experiments in organic and inorganic chemistry, physics, biology, Earth science, and environmental science.

Specifications

  • Temperature range: –20 to 330°C (–4 to 626°F)
  • Maximum temperature that the sensor can tolerate without damage: 380°C
  • Typical Resolution: 0.10°C
  • Temperature detector used: Platinum RTD (100 Ω)
  • Accuracy: ±0.5°C or better
  • Voltage Range: 0.2–4.8 V
  • Response time from 25 to 100°C in water: 30 seconds
  • Probe dimensions:
    • Probe length (handle plus body): 24.5 cm
    • Stainless steel body: length 17.0 cm, diameter 0.64 cm (6.4 mm)
    • Probe handle: length 6.8 cm, width 2.25 cm, thickness 1.3 cm
