Description
The Current Probe measures DC and low-frequency AC currents up to 600 mA. Use Current Probes in combination with Differential Voltage Probes to investigate Ohm’s Law and explore series and parallel circuits. The 0.1 Ω shunt resistor minimizes changes to your circuit.
Specifications
- Range: ±0.6 A
- Maximum voltage on any input: ±10 V
- Input Impedance (between inputs): 0.1 Ω
- Input Impedance (to ground): 10 MΩ
- Typical Resolution: 0.31 mA
- Linearity: 0.01%
- Supply voltage: 5 VDC
Current in amperes:
- Slope: –0.25 A/V
- Intercept: 0.625 A

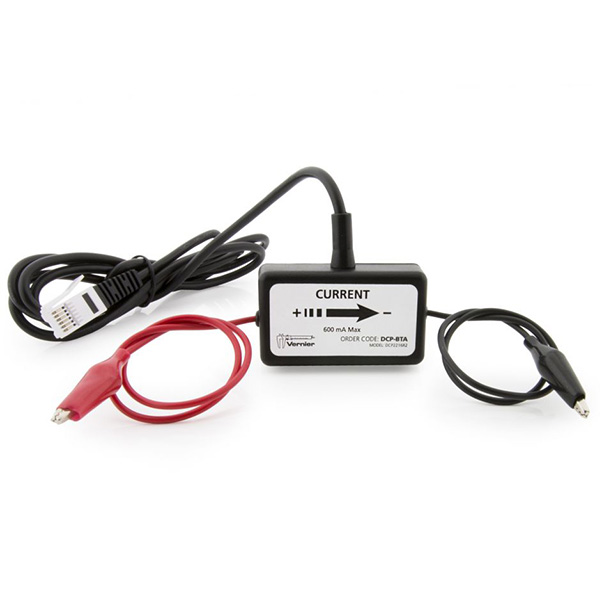

Vernier Current Probe
